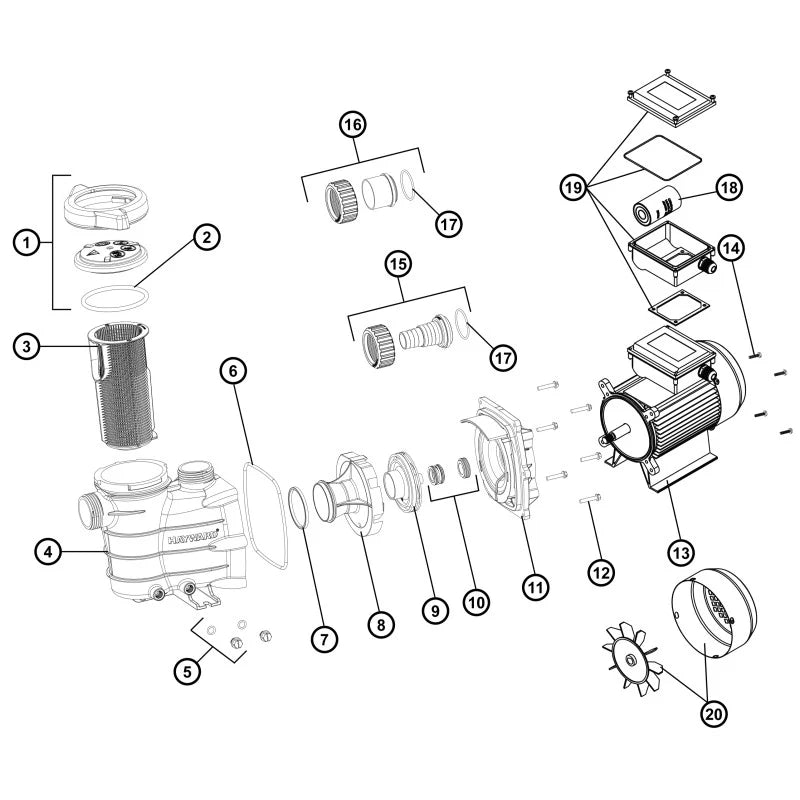

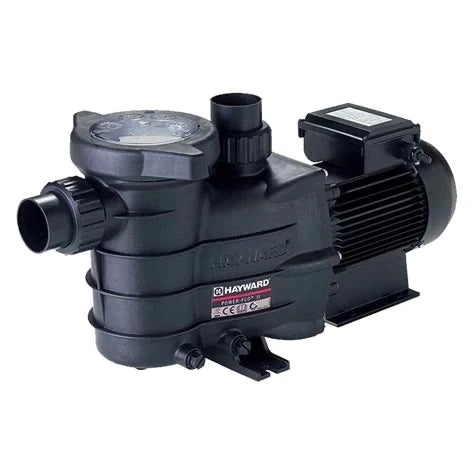

This technical drawing provides a complete visual breakdown of the Hayward PowerFlo II and Powerline pump models, including SP8102XE31, SP8103XE61, SP8105XE81, SP8107XE111, SP8110XE161, and SP8115XE221. Ideal for professionals and pool owners alike, the diagram clearly identifies every internal component, making it easy to locate, assess, and order the correct spare parts.

At the bottom of the drawing, you’ll find a detailed spare parts list corresponding to each component in the diagram. Whether you’re performing maintenance or a full repair, this drawing ensures accurate part selection and supports a smooth servicing process.

• Covers 6 models in the PowerFlo II / Powerline series
• Includes exploded view and numbered parts list
• Perfect for diagnostics, repairs, and replacement ordering
